POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGERS

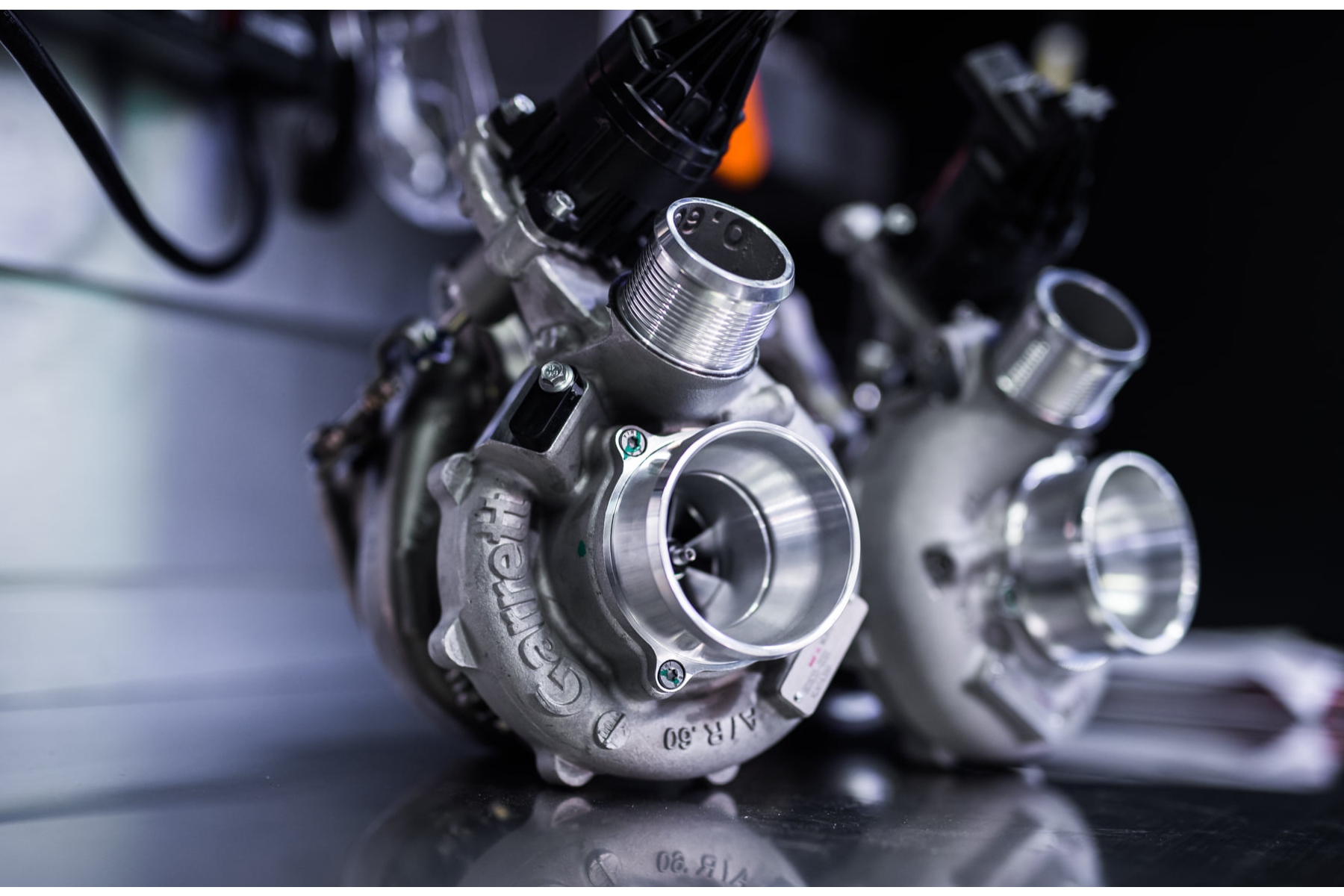

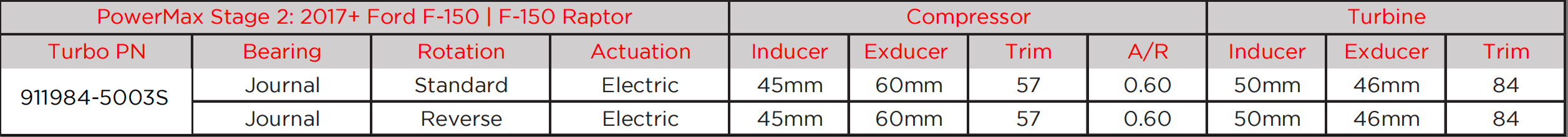

The Garrett PowerMax™ Stage 2 turbocharger upgrade for the 2017 - 2021 F-150 and F-150 Raptor platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP*. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.

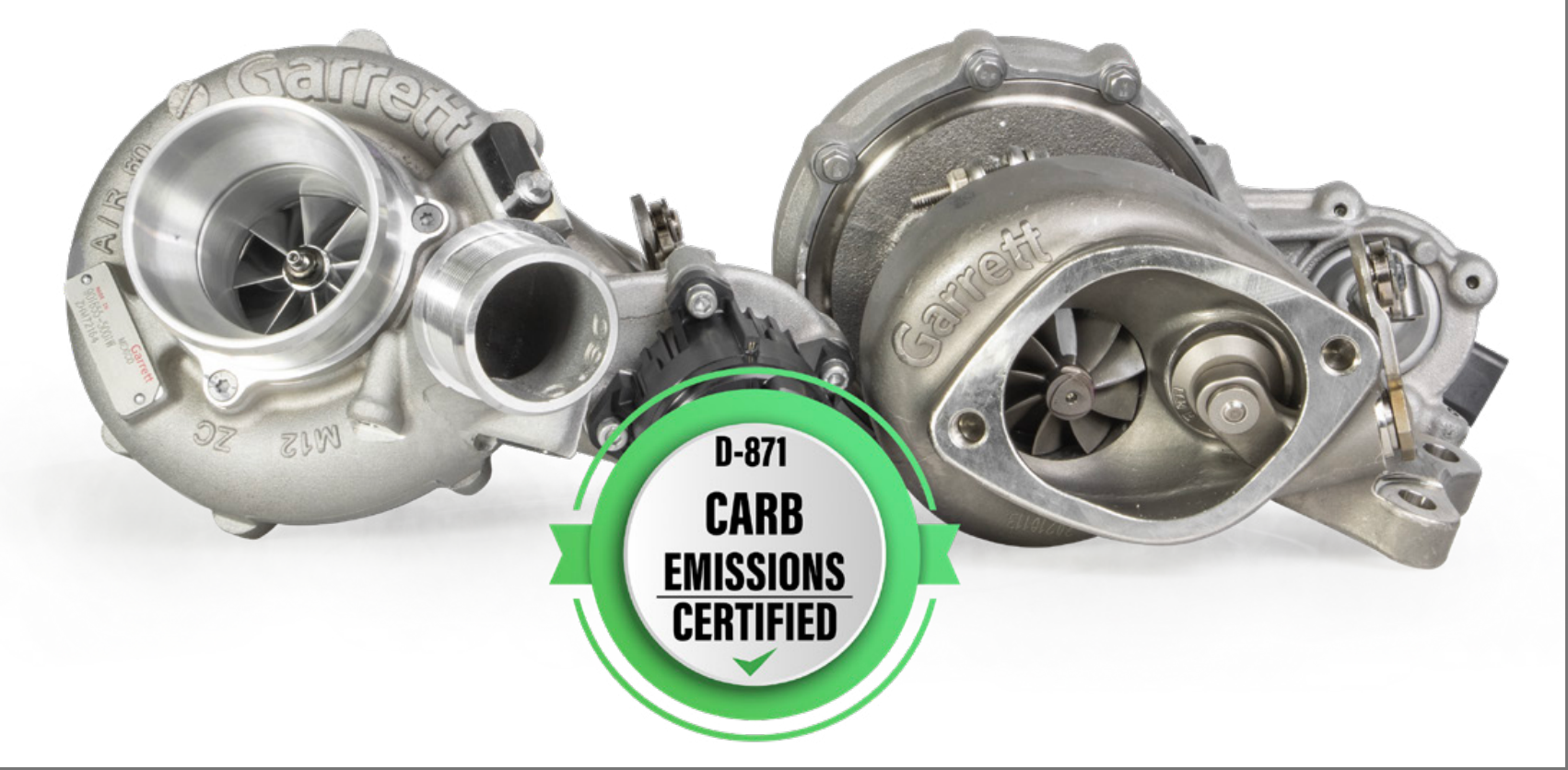

These turbochargers have received California Air Resources Board (CARB) certification. This certification (EO D-871) means our product has been tested in accordance with manufacturer/OEM specifications and meets the emissions standards set by the state of California and is approved for use in all 50 states when used as a drop-in replacement for factory equipment

Stock inlet adapter (for use with the stock intake system) and the 2.75 inch adapter (for use with larger than stock intake systems) have different performance potentials.

Features:

Direct-fit Stage 2 upgrade (LH & RH Turbos) Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port

Adapter for stock inlet tube included with turbo kit

CARB Certified D-871

700+ BHP capability **

Complete assembly with calibrated electric actuator

Billet compressor wheel with 54% increased flow

Inconel turbine wheel with 52% increased flow

Modern compressor and turbine wheel aero

Tuned ported shroud for optimal compressor surge and choke performance

Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)

Journal-bearing rotating group

WARNING: Maximum allowable turbocharger speed is 176krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately

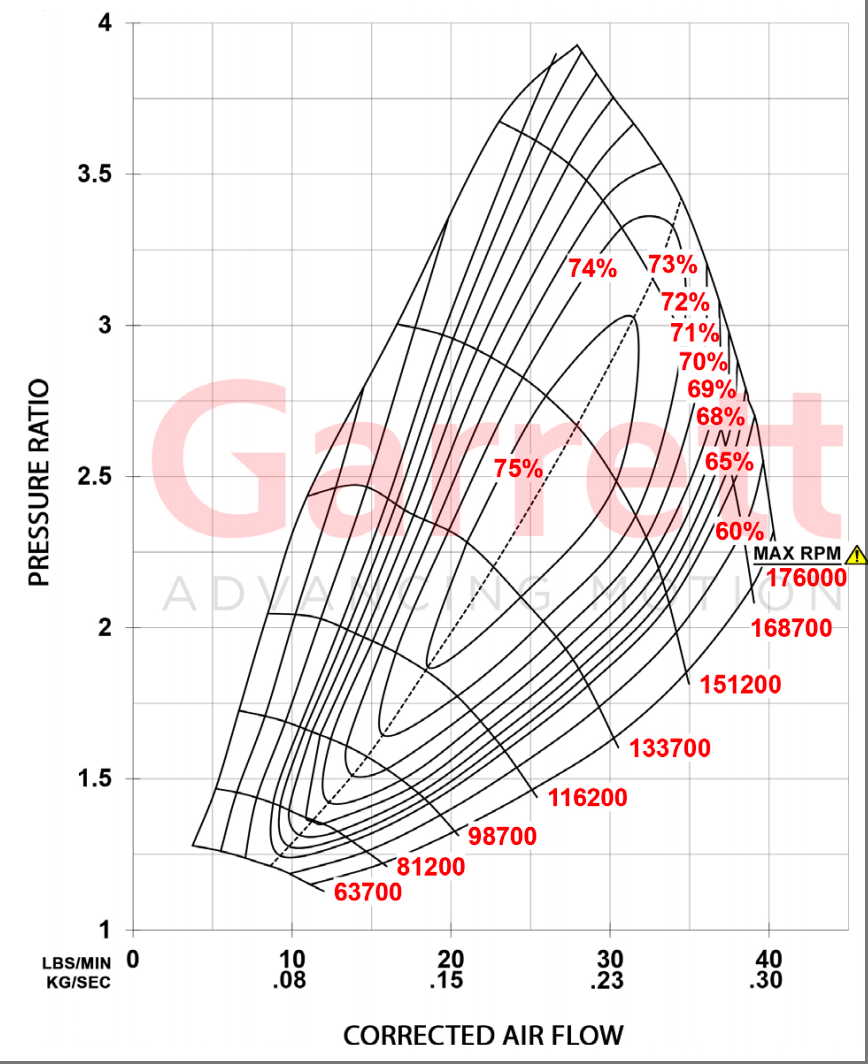

**Estimated Horsepower. Performance results of this product are highly dependent upon your vehicle's modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
