Supercharger

Item Description

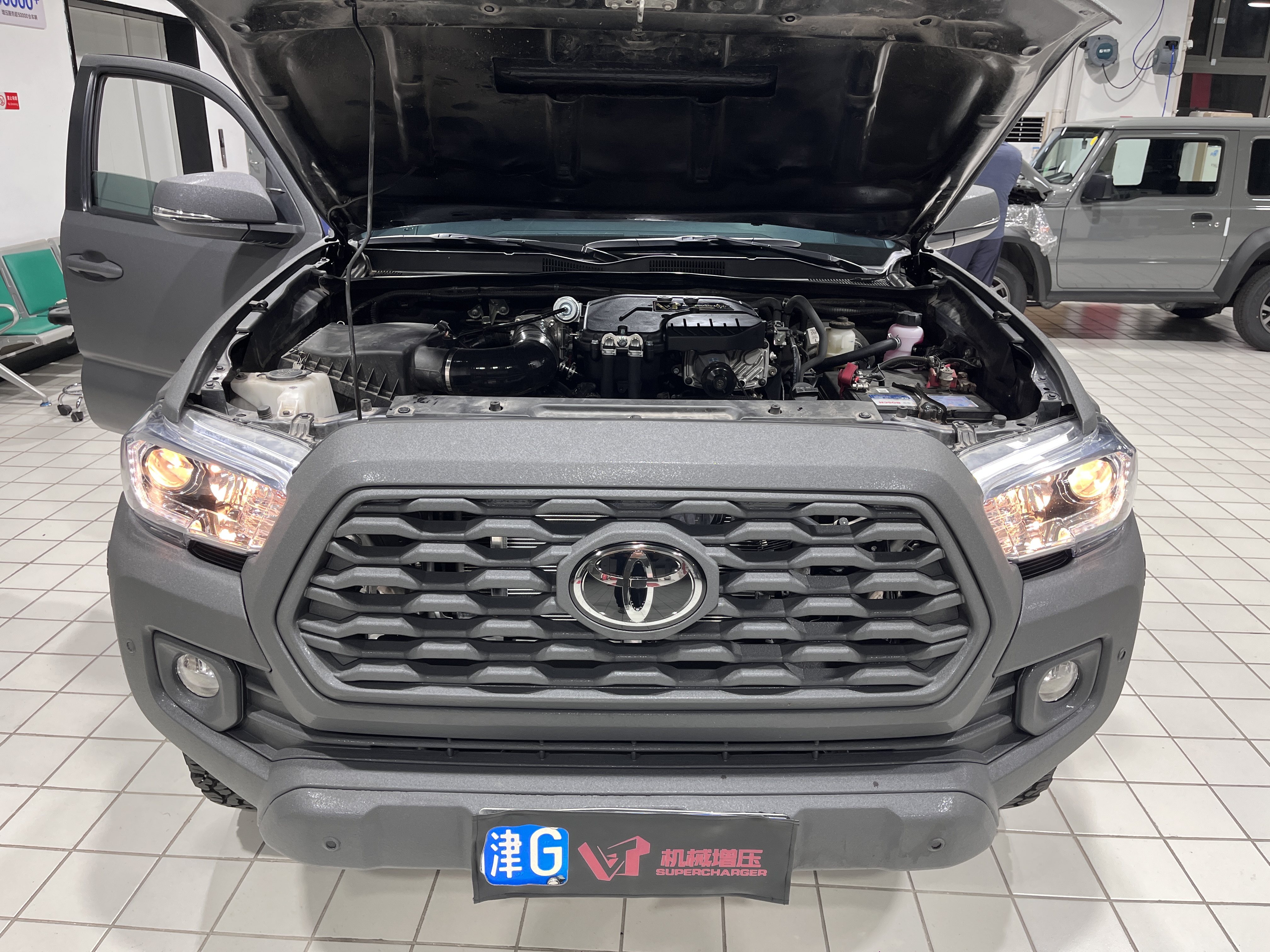

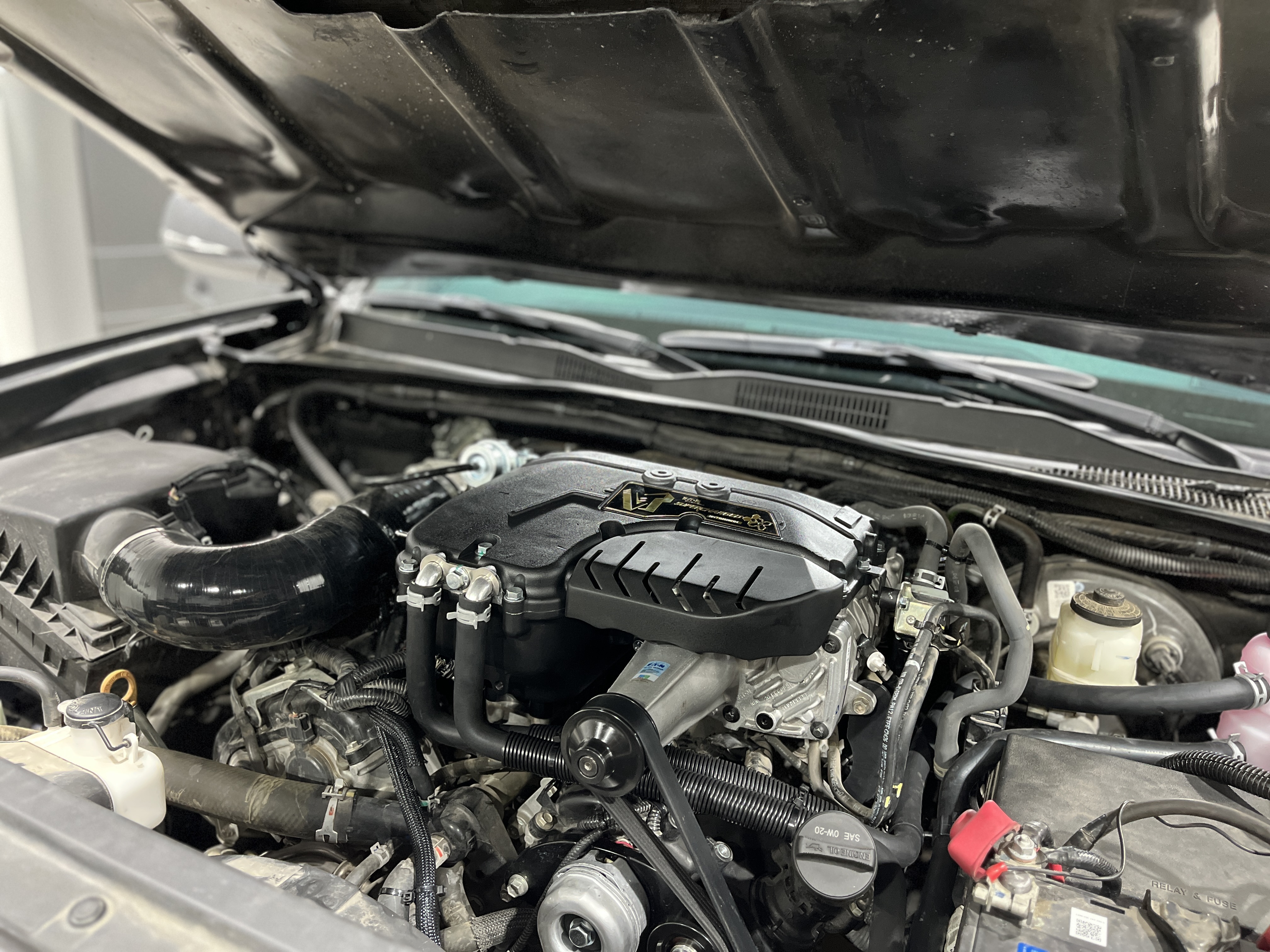

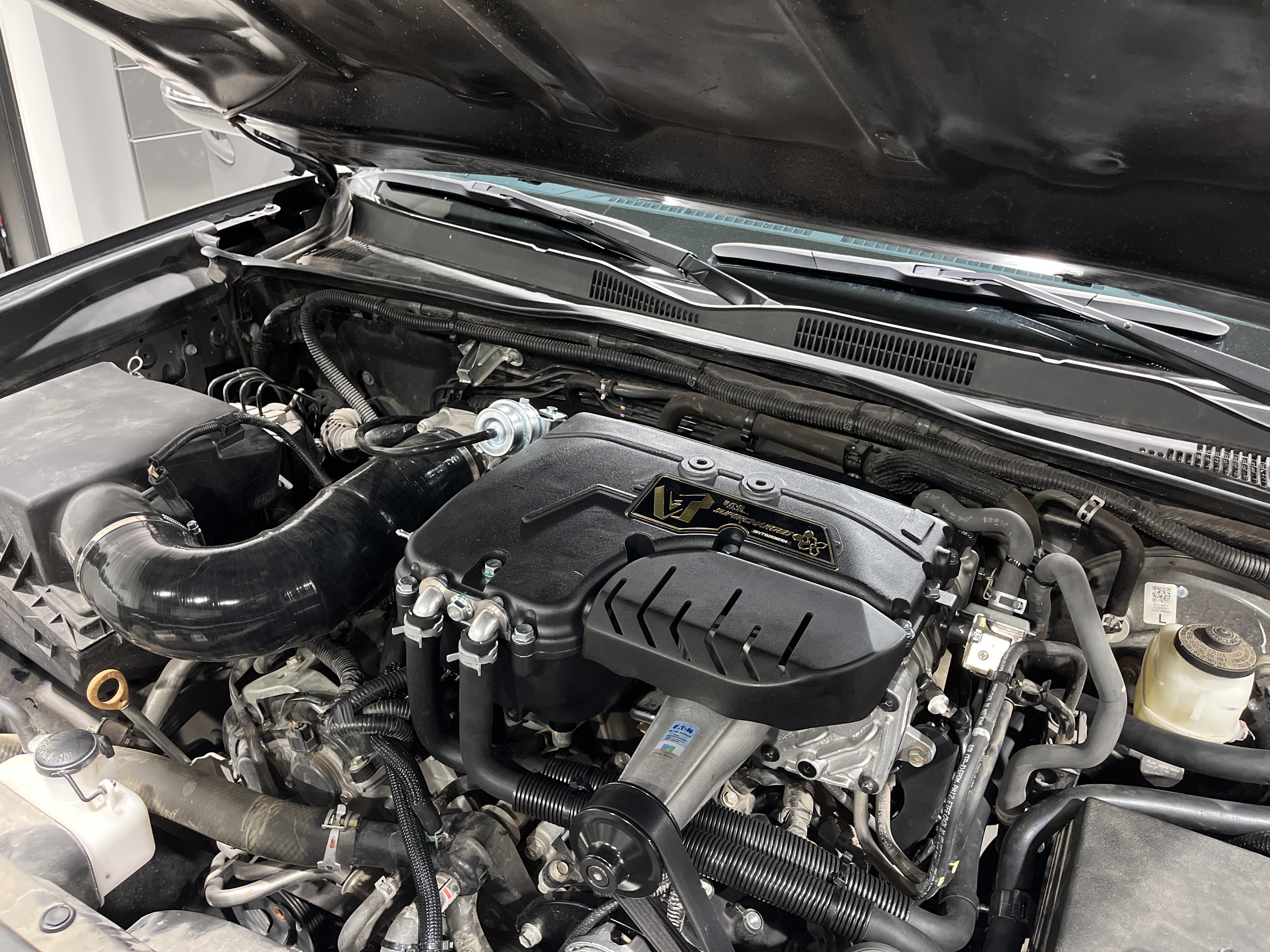

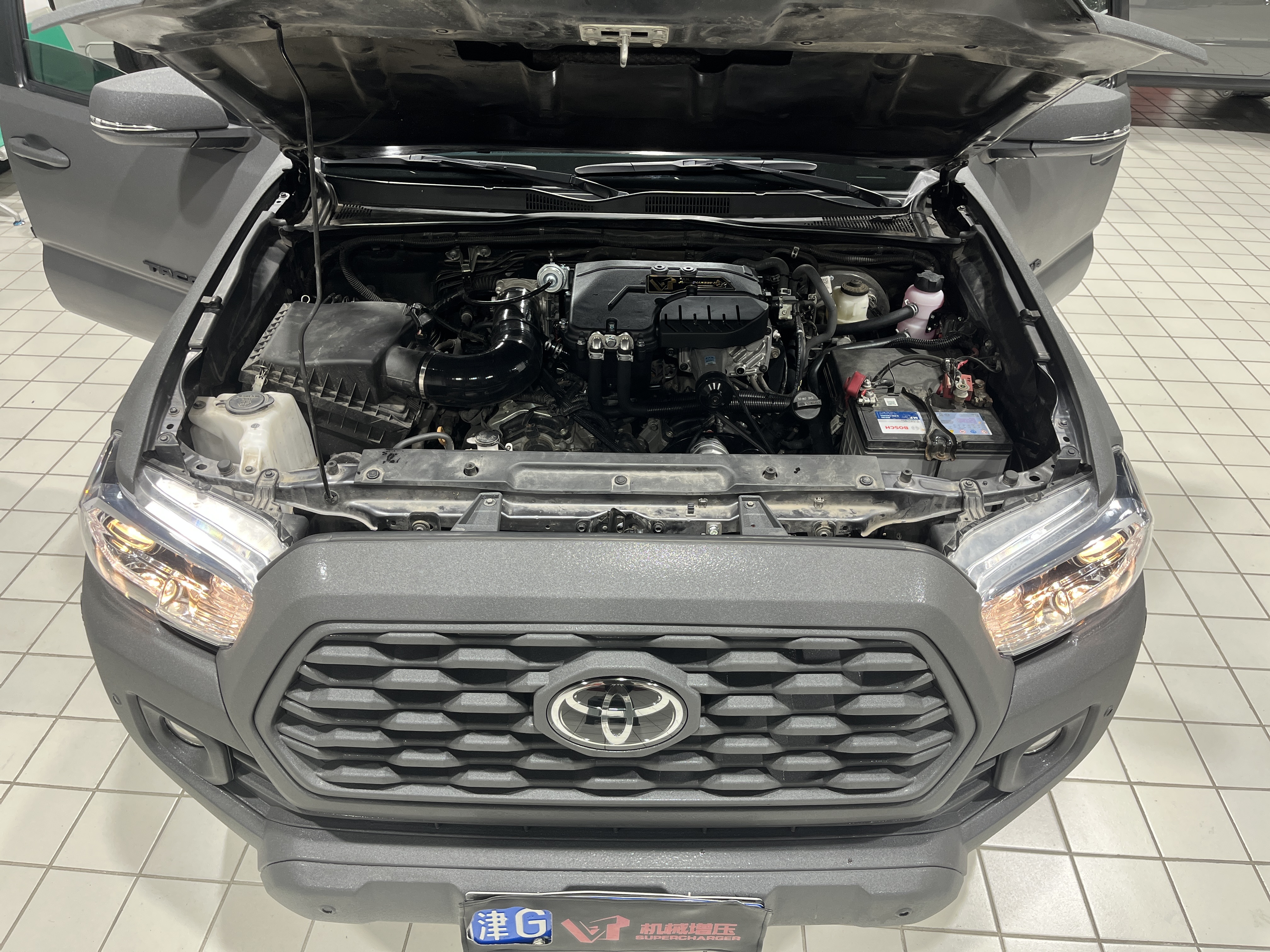

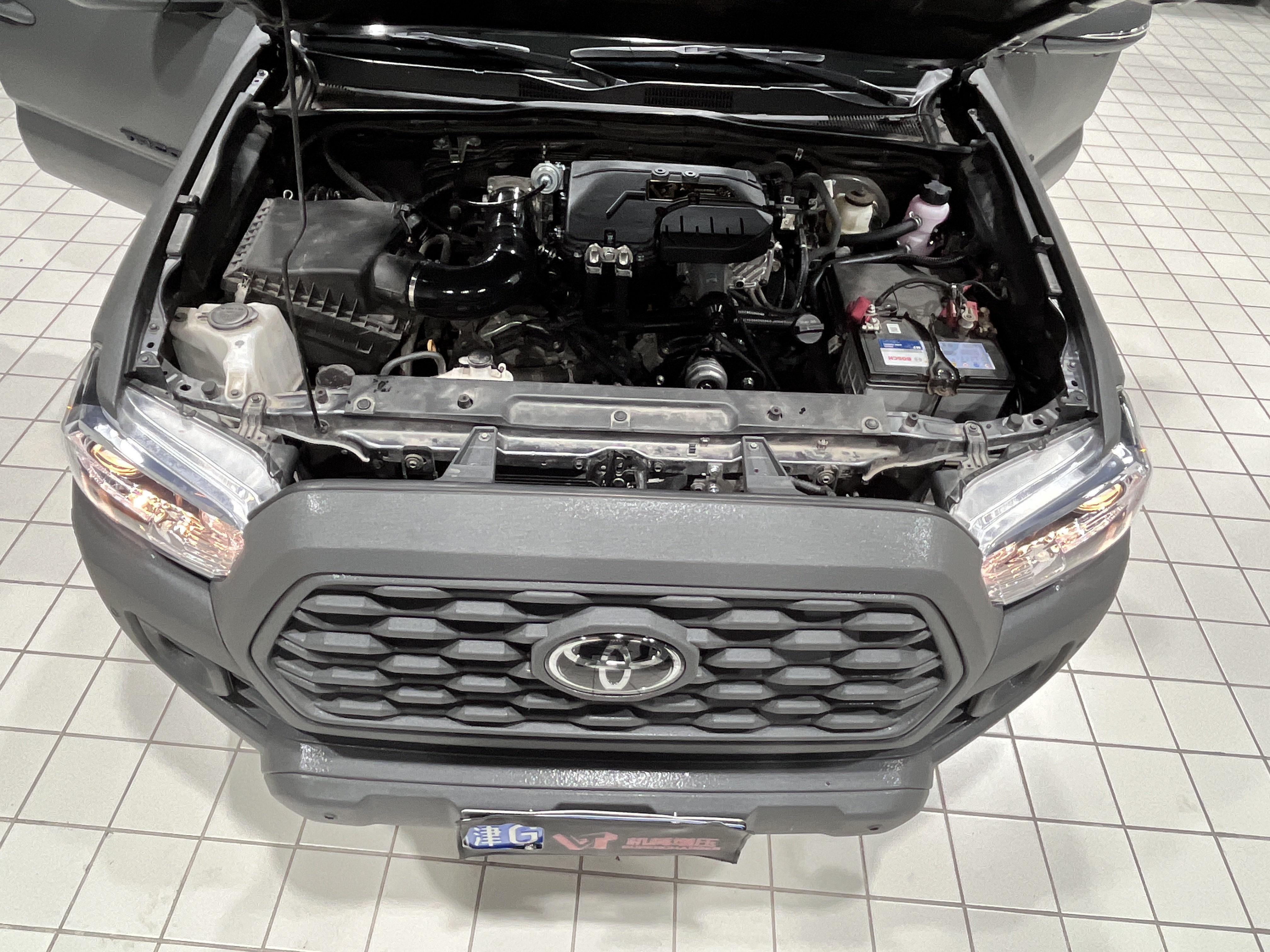

Power your Toyota Tacoma 3.5L V6 engine with the VT TVS1320 Supercharger kit!

This kit includes everythingyou need, from hardwareto ECU tuning.Specifically designed for Toyota 2GR V6 3.5L engines, thissystem provides 45% more horsepower thanstockand an additional 35% more torgue output atjust 7psi of boost!

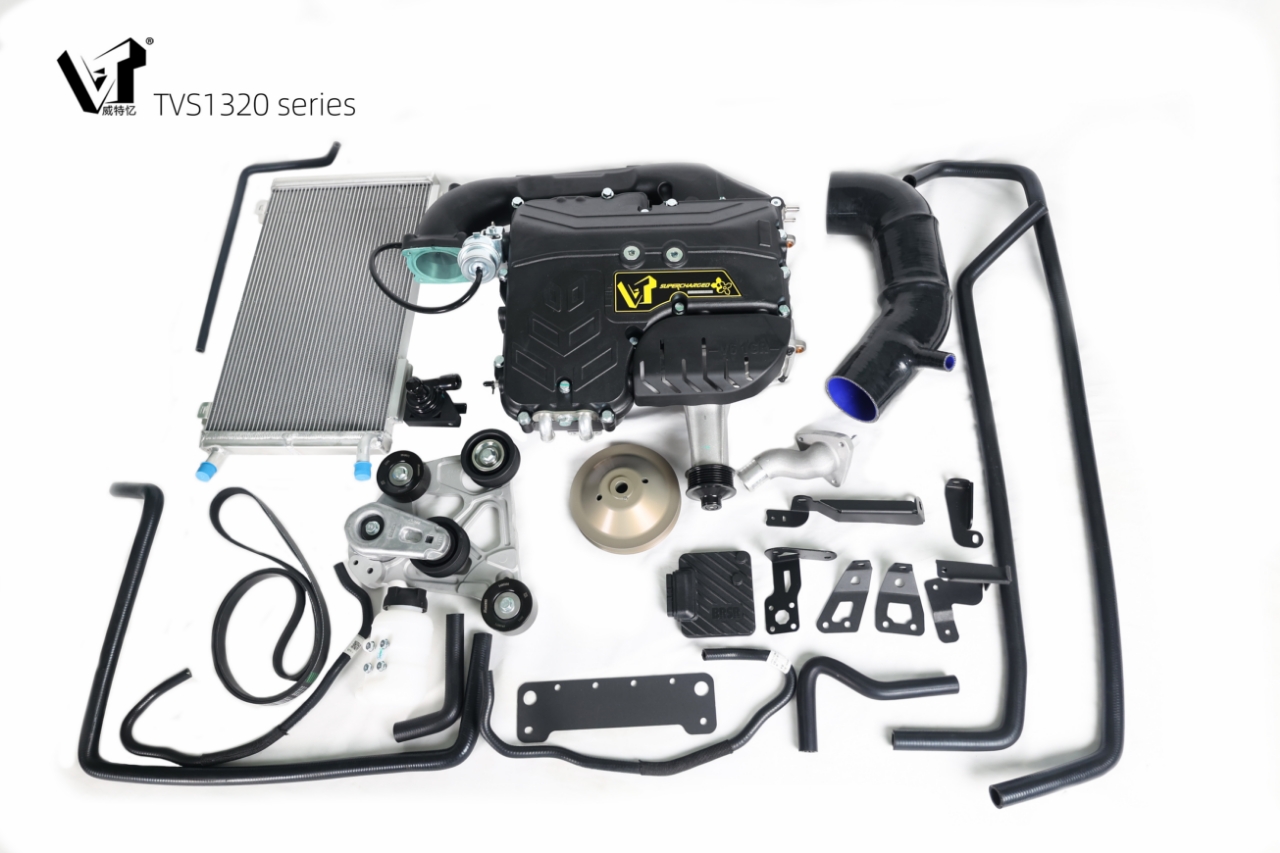

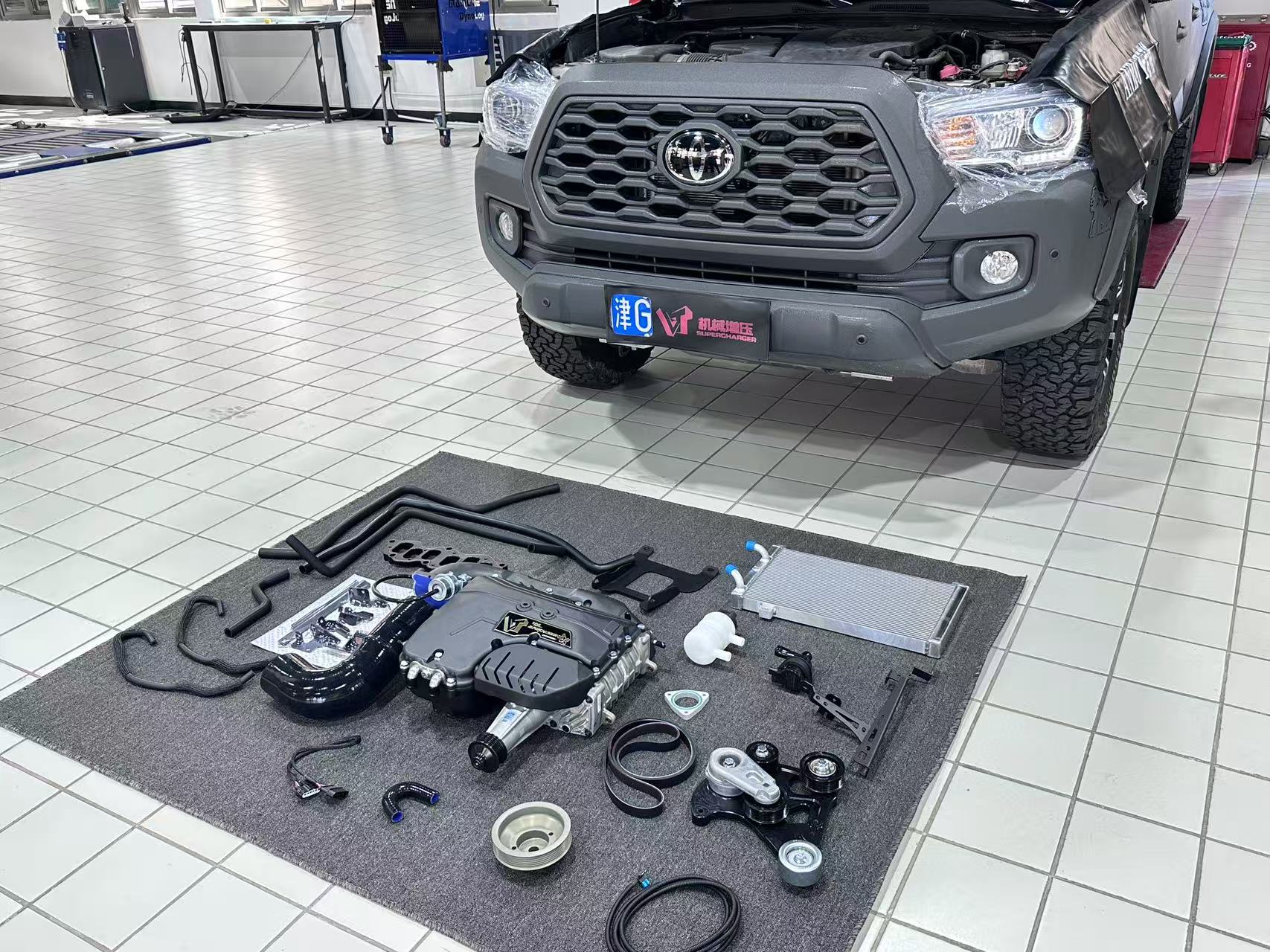

The VT supercharger kit includes: VT tvs1320 supercharger body(1320cc), intake manifold, mid-mountedwater cooler,kettle, water pump, water-cooledradiator, belt, idlerwater pipe, intake pipeline. bracket, ECU programand other related accessories.

Built-in air passages and water passages,preciseinstallation position, harmoniousappearance withthe original car, adopting one-piecedie-castingaluminum shell, not only lighter, but alsobetter heatdissipation effect, super large watercooler, stableand long-lasting cooling effect, high airintakeefficiency, Suitable for all-terrain roadconditions The kit is non-destructively installed with theoriginalbits, only bolts are required, no brokenwires,cuttingand welding etc.There are two colorsof red andblack, and the color can also becustomizedaccording to customer needs.The whole set has a 3 years warranty andglobal shipments!

Revolutionary Performance Gains

45% Horsepower Increase

35% Torque Boost

Linear Power Delivery: TVS1320's twin four-lobe rotors ensure seamless acceleration

Altitude Compensation: Maintains optimal performance up to 5,000m elevation

Precision-Engineered Components

Core System Architecture

TVS1320 Supercharger Unit

TVS 1320 rotor design delivers 15% greater airflow efficiency than conventional

superchargers

Integrated Cooling System

Mid-mounted water cooler (40% larger surface area than competitors) + auxiliary

radiator maintains intake temps below 50°C

Aerospace-Grade Construction

One-piece die-cast aluminum housing (T6-6061) reduces weight by 22% vs cast iron

units while improving heat dissipation

Intelligent Thermal Management

Dual-circuit cooling system with 12V high-flow water pump (18L/min capacity)

CNC-machined intake manifold with velocity stacks for laminar airflow

amless Integration

Friendly Installation

Zero Structural Modifications: Uses existing mounting points with ISO 898-1

certified hardware

Plug-and-Play Electronics: Includes pre-mapped ECU tune supporting:

Adaptive fuel trim calibration

Boost-based ignition timing

Fail-safe pressure monitoring (0-15psi range)

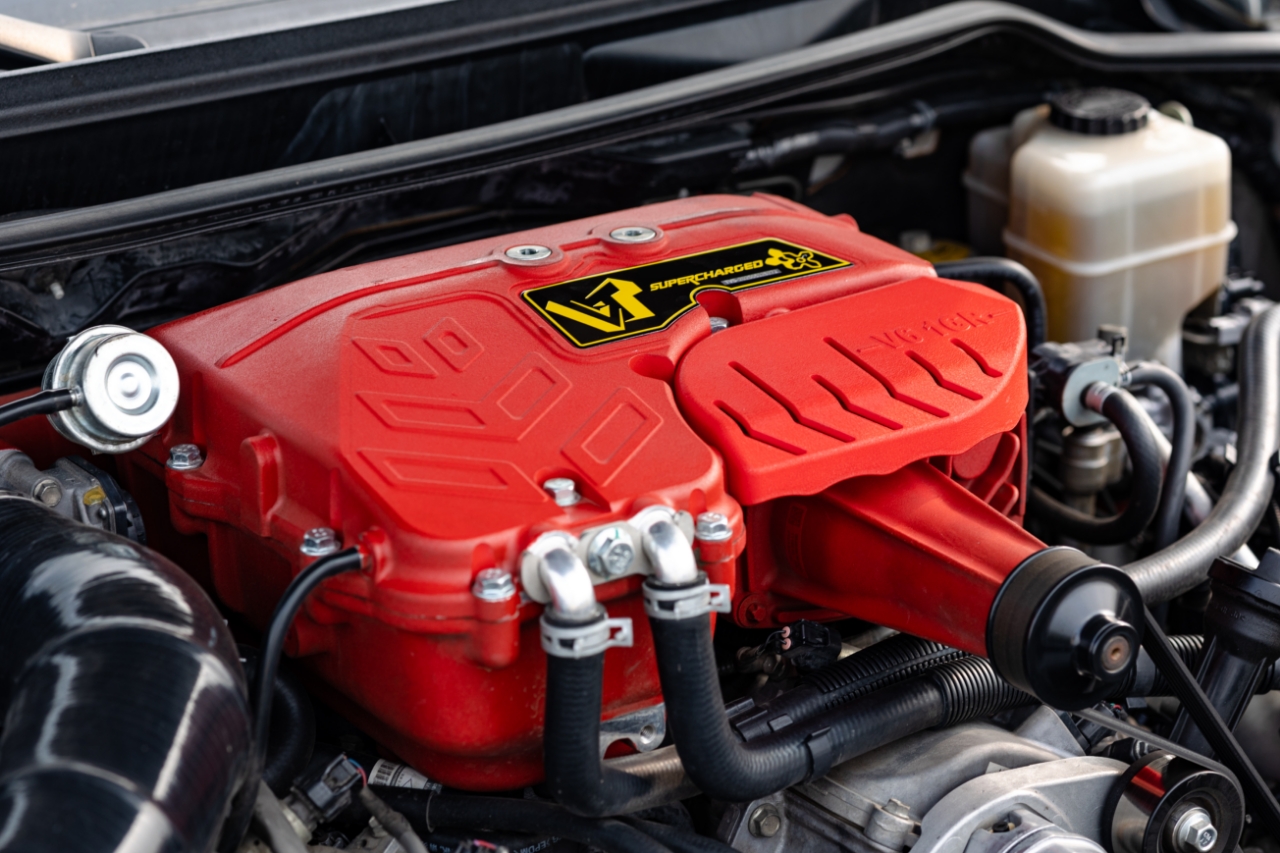

Color-matched housings (standard red/black) with CAD-optimized bracketry

Ruggedized Design Features

Kevlar-reinforced drive belt

Uncompromising Reliability

3,000-Hour Durability Testing: Simulated equivalent of 150,000km under extreme

conditions:

Desert heat cycling (-20°C to +65°C)

Continuous 6,500RPM operation

3-Year Comprehensive Warranty: Covers all mechanical components
